VectorNav Technologies Introduces VN-360 GPS-Compass

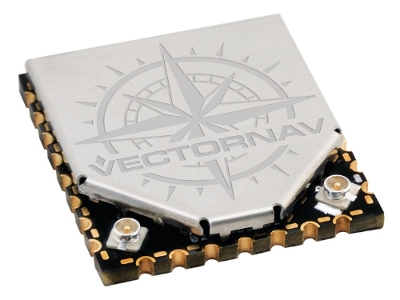

DALLAS, TX -- VectorNav Technologies introduces the VN-360 GPS-Compass heading and position sensor. The VN-360 is an OEM GPS-Compass module that provides an accurate, True North heading solution for systems integrators seeking a reliable alternative to magnetic-based sensors.

Many systems currently available on the market depend on digital magnetometers for providing heading measurements of a manned or unmanned platform. However, the majority of these platforms (e.g. multirotor UAVs, ground robots or satellite antennas) also include ferrous materials, motors, batteries or electrical components that drastically limit the ability of a magnetometer to provide an accurate or reliable heading solution. VectorNav's VN-360 provides a miniature, cost-effective GPS-based alternative that is unaffected by these magnetic disturbances and changes to the magnetic environment.

Incorporating two onboard GNSS receivers, the VN-360 calculates the relative position between its two GNSS antennas to derive a heading solution that is an order of magnitude more accurate than a magnetic compass. It supports a variety of GNSS antennas that can be mounted on the host platform with a separation distance anywhere from a­­­ few centimeters out to several meters. This distance can be configured to provide optimal start-up time, outputting an accurate heading solution typically under two minutes.

The VN-360 is ideal for applications such as antenna pointing, multirotor UAVs and aerostats, automated agriculture, heavy machinery, ground robots, weapons training and warfare simulation, and direct surveying among others. The VN-360 joins VectorNav's line of inertial sensor systems, which includes the VN-100 IMU/AHRS, VN-200 GPS/INS and VN-300 Dual Antenna GPS/INS.

For more information:
1-512-772-3615
Email: [email protected]
Web: http://www.vectornav.com
