Ultra-accurate ams sensor interface integrated into battery management systems in leading Electric Vehicles

Unterpremstaetten, Austria -- ams AG announces that the BMW Group is using the AS8510, an integrated automotive sensor interface, to provide extremely accurate battery voltage and current measurements in its ‘i3’ series electric vehicles (EVs).

The BMW i3 model that is in volume production today includes an AS8510 in the battery sensor. The battery management system (BMS) monitors battery voltage and battery current of the 400V li-ion battery powering the cars’ electric motors, and ensures the functional safety of the vehicle’s battery systems.

Optimization of energy storage and battery life are essential for EVs in order to provide customers with sufficient range and reliability. Accurate current and voltage measurements enable the BMS to make a highly accurate calculation of a li-ion battery’s State of Charge (SOC). This means that the driver benefits from an accurate estimation of the range the vehicle can cover before the battery is completely discharged.

When backed by a special calibration scheme, the sensor system in the BMS is able to measure current to an accuracy of just ±0.5% and voltage to an accuracy of better than ±0.1% over the full operating temperature range of the AS8510 (-40°C to +125°C) and over life time. Features of the AS8510, including its zero-offset architecture, low noise, high linearity, its multi-channel architecture and low drift made the task of designing the i series’ current and voltage measurement system easier than using other sensor interface architectures.

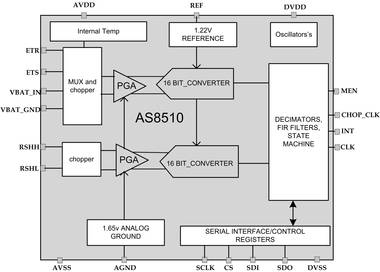

The AS8510 provides integrated data acquisition front ends, which include two independent 16-bit sigma-delta ADCs. Measuring current across a shunt resistor in one channel over a range from a few milliamps up to 1kA, it provides a digital output via a serial peripheral interface. Through the second channel it can capture three different voltage sources simultaneously with current samples.

The AS8510 is fully compliant with the AEC-Q100 standard. The device supports the functional safety compliance efforts of car manufacturers in line with the requirements of the ISO26262 standard.

‘The techniques for monitoring the State Of Charge (SOC) and the State Of Health (SOH) in electric vehicle batteries are constantly being refined and improved, and BMW has set a new benchmark in battery management system design in the new i3 model. ams is proud to have supported BMW’s advanced implementation of ultra-accurate battery parameter measurement in the demanding environment of a vehicle drivetrain,’ said Bernd Gessner, Vice-President and General Manager of the automotive business unit at ams.

To get more information on the AS8510 Data acquisition IC for battery management, visit http://www.ams.com/Sensor-Interfaces/AS8510
