Next-Gen HPHT Connector Enlists Unique Polymer

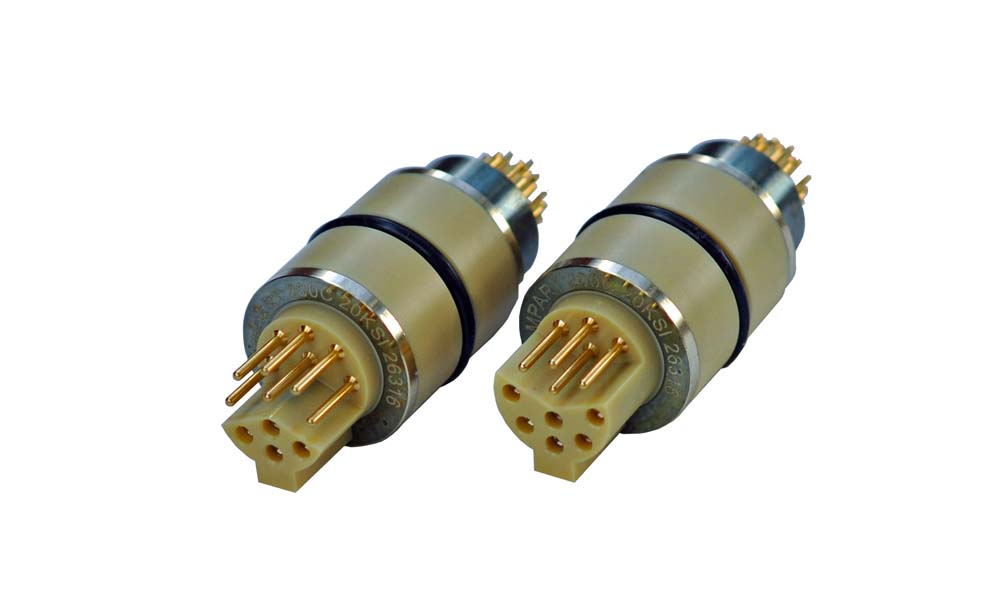

Rampart Products specifies VICTREX HT polymer for its KTK (Kintec) high pressure-high temperature (HPHT) electrical connectors. Used in oilfield equipment, the reliability of the multi-pin connector is crucial to reducing costly downtime. The material as well as the connector has been tested beyond industry standards in real-world environment simulations. During material selection and the development of the molding process, both companies worked closely together, enabling Rampart to introduce its first connector using VICTREX PAEK polymer.

As oil reserves continue to be depleted, the industry is being forced to find oil in unconventional places that can expose equipment and components to higher temperatures and pressures as well as aggressive corrosive elements. “Customers using epoxy connectors face a couple of potential issues,” explains Ed Beshoory, President of Rampart Products. “Consequently, we were looking into high performing materials capable of meeting multiple requirements. As a result, we are now using for the first time a Victrex material, VICTREX HT polymer, due to its consistent properties and processing. The education and processing support Victrex provided in the development phase have convinced us to also look at other Victrex high performing polymers for future applications, enabling us to offer connectors with the performance properties we are looking for.”

The new connector had to be rated for temperatures beyond 400°F (200°C) and pressures at 20,000 psi (1380 bar) providing also a reliable electrical connection while protecting expensive sensors and electronics. Additional requirements included compatibility with industry-standard pin patterns, extended mating cycles and assembly efficiencies. To prove the reliability of the multi-pin connector made with the Victrex material, Rampart gained data from using a new test vessel. It allows real-world operational settings to test the performance at both high temperature and high pressure simultaneously in a precise manner. Alternative evaluation strategies might typically be to test the connector at an appropriate temperature but at minimal pressure, or at high pressure and room temperature.

Going beyond standard testing protocols, such as NORSOK and ISO, is familiar to Victrex. In doing so the company is supporting the industry to better understand how VICTREX PAEK materials operate in harsh environments. “Victrex typically tests polymers for longer, that is for more hours, and in real-world condition simulations such as higher temperatures and more aggressive chemical environments than those prescribed by the test protocols,” says Dr Geoff Small, Energy Market Technology Manager at Victrex. “This provides a better prediction of how the polymer will perform in various conditions to contribute to the development of reliable applications.”

Traditionally, glass-reinforced epoxy (thermoset) was used in the KTK electrical connector market. However, using this material can result in cracking and chipping, requiring oil service companies to replace the connectors. Rampart Products reported that the VICTREX HT connector has more than twice the impact resistance of the glass-reinforced epoxy constructed connectors which provides greater reliability in use by reducing cracking and chipping. Connectors made from Victrex´s high performing polymer can provide more stability in the drilling process by enabling the reliable transmission of power and data to the tool, compared to incumbent solutions. In addition, the vibrations within the tool can cause dust to be generated from the epoxy connectors which may cause electrical shortages and costly downtime.

Oilfield drilling equipment, particularly MWD (Measure While Drilling) tensor systems, typically require 7-14 KTK connectors. The electrical connectors made from the Victrex material can also be used in LWD (Logging While Drilling) tools, and downhole battery pack assemblies. VICTREX HT polymers were designed to maintain excellent mechanical properties at elevated temperatures, pressures and in harsh chemicals and provide an overall performance profile beyond that of VICTREX 450G™ PEEK polymer, a high-performance polymer frequently used throughout the industry.
