Mini Pressure Sensor Performs Dynamic and Static Measurements

The XPC10 miniature pressure sensor promises to accurately measure both static and dynamic pressures across an operating temperature range of -40°C to +220°C. Sporting a rugged, stainless-steel housing with a profile as small as 12 mm, the sensor suits a number of harsh environments including test benches, oven monitoring equipment, and cooling regulation systems. Other features include SanShift technology that eliminates zero shifts caused by installation torque. A foil strain gage wired in a fundamental Wheatstone bridge circuit is at the core of the sensor to ensure temperature stability.

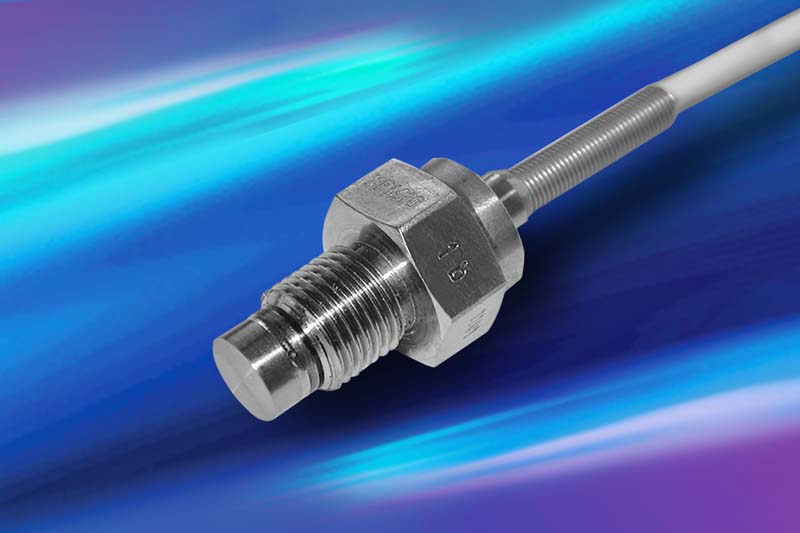

XPC10 miniature pressure sensor

The XPC10 is available in absolute, sealed, and gauge ranges from 10 bar to 500 bar, with an onboard amplifier available for all ranges as well as in M10x1 or 3/8-24 UNF threaded designs. A datasheet is available at http://www.meas-spec.com/downloads/XPC10.pdf

Measurement Specialties Inc.
Hampton, VA
757-766-1500
800-745-8008
http://www.meas-spec.com
