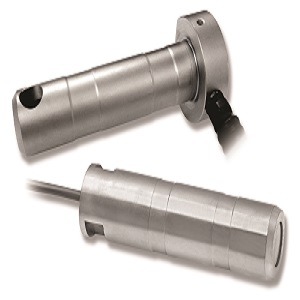

Malvern, PA --- The VPG Transducers business unit of Vishay Precision Group, Inc. introduces its Model 5113 and Model 5117 load pins. Model 5113 and Model 5117 load pins provide reliable and repeatable measurements of force, tension, load, and overload parameters, with an industry best-in-class safe overload capacity of up to ±250 kN. Their robust design incorporates VPG’s own proprietary foil strain gage sensing technology, bonded onto a zinc-plated hardened alloy steel body. Units are highly compact, with the Model 5113 measuring 38 millimeters, and the Model 5117 measuring just 25 millimeters, facilitating their ease of installation within space constrained environments.
The load pins are offered in choices of three unique rated capacities from ±25 to ±60 kN. They further incorporate an embedded ratiometric voltage output converter and IP66 environmental protection. Alternate connector types, cable lengths and other customization options are available upon request. Please consult VPG Transducers for details.
The long-term stability and reliability of Models 5113 and 5117 make them an ideal choice for the support of virtually any control or safety system, including those operating under severe load and environmental conditions. Both models may be used as direct drop-in replacements for legacy load pin solutions, including those installed within typical off-highway and agricultural vehicle trailer hitch systems. In this instance, the Model 5117 is typically mounted onto the top arm, while the Model 5113 is installed onto the bottom arm. Other applications include off-road vehicles, plowing vehicles, cranes, hoisting gear, pulley shafts, winches, chain and brake anchors, bearing blocks, tensioning systems, elevators, floor conveyors, commercial and civil aircraft, chemical processing and R&D.
