Harsh Environment Controllers Expand Analog Functionality

Fredericktown, OH --- Divelbiss Corporation introduces the HEC-P6000 Family of controllers, offering powerful control and communications capability for the harshest environments. Programmed using the no-cost Divelbiss EZ Ladder Toolkit® in Ladder Diagram, Function Block, and Structured Text, and based on P-Series PLC on a Chip™ technology, the HEC-P6000 family provides maximum flexibility for controlling mobile equipment, communicating with various serial buses and communications protocols, logging system data, or adding Internet of Things (IoT) capability to existing systems with the Divelbiss VersaCloud M2M platform.

Featuring a sealed enclosure that is designed for the harsh duty commonly found in mobile environments, HEC-P6000 family controllers have a high I/O count with 14 digital inputs, 3 high speed counter inputs, a quadrature encoder interface, 14 digital outputs rated for 2A each (of which 12 are PWM capable), and more analog I/O than any previous HEC controller; including 4 analog inputs which are user configurable as 0-5V, 0-10V, or 0-20mA inputs and 2 analog outputs which are 0-10VDC. If additional I/O is required, the CAN and serial ports may be utilized to communicate to expansion I/O or additional controllers.

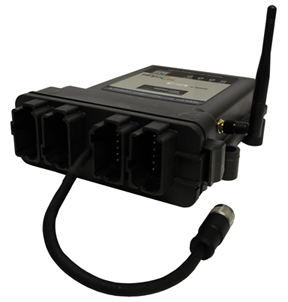

DivelbissHEC-Gateway Controller

HEC-P6200 Harsh Environment Controller

The controllers feature two serial ports, which are user configurable as RS232 or RS485, and supports MODBUS RTU/ASCII protocols as either a Master or a Slave device. The serial ports are also directly programmable via the Structured Text programming language, allowing the implementation of custom protocols, which makes them ideal for communicating to bar code scanners, RFID readers, or other serial devices. Two CAN ports are available and fully support the SAE J1939 and NMEA2000 protocols. Ethernet and Wi-Fi ports can be used for MODBUS TCP Server and Client communications, as well as IoT communications with the VersaCloud M2M platform. HEC-P6000 controllers have optional cellular capability for communicating with the VersaCloud M2M platform. A GPS option is also available.

For applications that require data logging, HEC-P6000 controllers are available with a Real-Time-Clock, 512K of battery backed SRAM, and internal Micro SD card socket. These features give the user ultimate flexibility and options for implementing data buffering and logging. When utilized with the Divelbiss VersaCloud M2M platform, HEC-P6000 family controllers can communicate data to VersaCloud, where it is date/time stamped and stored in the Cloud database for later viewing, analysis, and export. HEC-P6000 family controllers support supply voltages from 8-32VDC and have a wide operating temperature range of -40°C to +80°C, making them suitable for use in applications with extreme environmental requirements.

HEC-P6000 family controllers give the user the ability provide machine control, Data Logging and IoT Connectivity to virtually any application in the mobile, industrial, environmental, agricultural, construction, and other markets. As a part of the Divelbiss VersaCloud M2M complete end-to-end IoT connectivity solution, HEC-P6000 controllers provide a powerful, flexible system to enable remote control and communications.

For more information:
[email protected]
