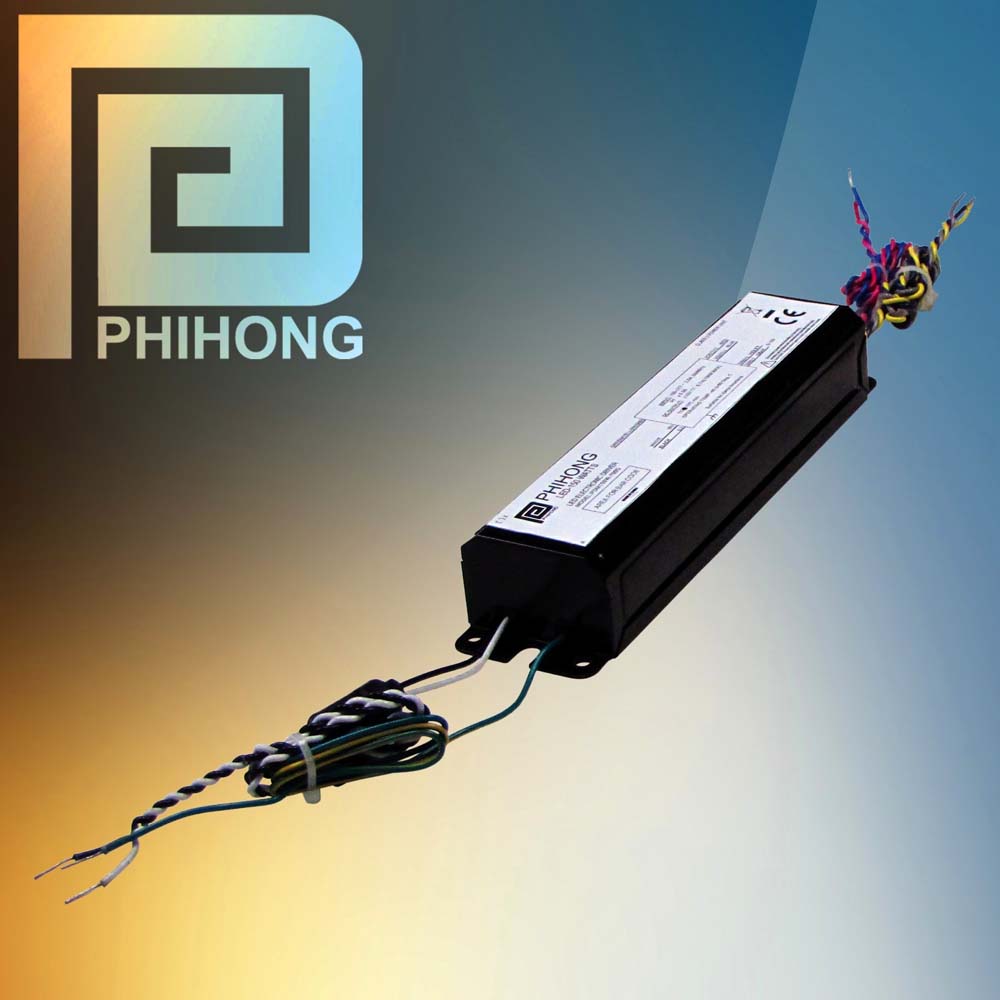

Dimmable 150W Constant Current LED Drivers Are 94% Efficient

Suitable for use in both dry and damp locations, the PDA150 Series 150W constant current LED drivers feature optional 0 to 10V dimming and a 20V auxiliary output for controllers. Rated for input voltages spanning 120 to 277 Vac, the drivers deliver 150W of output power and typical efficiencies of 94% at 230 to 270 Vac and 92% at 120Vac. They are available with six constant current outputs: 350 mA, 530 mA, 700 mA, 1050 mA, 1500 mA, and 1680 mA. Life expectancy is50,000 hours at full output power, 50°C ambient temperature and ≤80°C Tcase, and 100,000 hours at ≤65°C Tcase. Water- and dustproof per IP66, PDA150 Series LED drivers can tolerate humidity levels ranging from 10% to 95%. Pricing for single unit quantities starts under $70. A datasheet is available at http://www.phihong.com/assets/pdf/PDA150W.pdf

Phihong USA
Fremont CA
[email protected]
