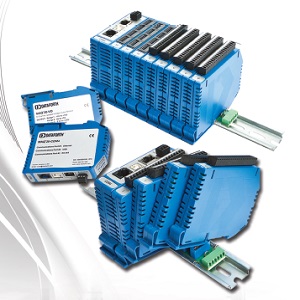

Tucson, AZ --- Dataforth Corp. adds two new modules to its MAQ20 system, significantly increasing its capabilities and flexibility for a wide range of industrial applications. The High Density Voltage Discrete Input Modules (MAQ20-DIV20 and MAQ20-DIVC20) are two versions of the same module, offering 20 discrete input channels that interface to 10-32VDC signals.
The MAQ20-DIVC20 module has a +24VDC compliance voltage for interfacing to relay contacts, solid state switches, or other devices that require an excitation. Discrete input states can be read individually or as a block and logic polarity can be user defined as standard or inverted. Field inputs have fast switching times and pulses as narrow as 200µs can be measured. Field input connections are made through high density spring cage terminal blocks.
Input-to-bus isolation is a robust 1500Vrms in the MAQ20-DIV20/MAQ20-DIVC20 modules, and each individual channel is protected up to 150Vrms continuous overload in case of inadvertent wiring errors.
The second new module is the High Density Isolated Discrete Output Module (MAQ20-DODC20SK), which has 20 isolated discrete output channels that can switch up to 60VDC signals and sink up to 3A of current. Channels can be switched individually or in blocks, and user configurable default output states, set upon power-up or module reset, ensure failsafe operation for critical applications. Logic polarity can be user defined as standard or inverted. Field outputs have fast switching times, and field output connections are made through high density spring cage terminal blocks.
Output-to-bus isolation is a robust 1500Vrms in the MAQ20-DODC20SK module, and each individual channel is protected up to 60VDC continuous overload in case of inadvertent wiring errors. In addition, this module has 150Vrms channel-to-channel isolation, providing the ability to control equipment with or without common signal grounds or different pieces of equipment with multiple reference potentials.
In both the MAQ20-DIV20/MAQ20-DIVC20 and MAQ20-DODC20SK modules, high channel count within the narrow module package gives exceptional functionality while preserving valuable mounting space, and high density minimizes cost per channel resulting in economical monitoring and control solutions.
Two other MAQ20 modules, the Isolated Process Voltage & Process Current Analog Input Modules (MAQ20-ISOMV/-ISOV/-ISOI) with channel-to-channel isolation, and the Discrete Relay Output Module (MAQ20-DORLY20) with 20 channels of relay output are in development and will be released in the near future.
Other MAQ20 modules include communications modules; analog input voltage, current, thermocouple, RTD and potentiometer, strain gage, and frequency modules; analog output voltage and current modules, and discrete input/output modules.
MAQ20 system Features include:
· Industry’s most affordable price per channel
· ±0.035% accuracy
· 1500Vrms channel-to-bus isolation
· Up to 240Vrms continuous field I/O protection
· ANSI/IEEE C37.90.1 transient protection
· Dedicated graphical control software packages
· Advanced features including integral PID control, alarms counters, timers, and PWMs
· 7-34VDC input power
· -40°C to +85°C industrial operating temperature
For more details, download product info at http://www.dataforth.com/catalog/pdf/MAQ20_Catalog.pdf
