Compact Fast Response Type K Thermocouple Amplifier Signal Conditioner Targets Industrial Applications

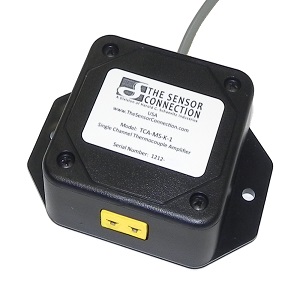

Troy, MI --- The Sensor Connection expands its line of measurement and control instrumentation with the addition of the model TCA-MS-K-1. This Single Channel Type K Thermocouple Amplifier Module converts the low output voltage signal from a Type K thermocouple probe to a single independent linearized 0 to 5 VDC output voltage. This output is ideal for interfacing to instrumentation equipment including data loggers, temperature indicators, chart recorders, and controllers. A unique feature of this product is the fast dynamic response of 1 ms. Features include:

• Input: Type K Thermocouple
• Temperature Measuring Range: 0 to +1250°C
• Analog Output: 0 to 5 VDC
• Supply Voltage: 10 to 32 VDC
• On-board CJC
• Response Time: 1 mS
• Housing is rated IP 51
• Compact Size, only 2.5" x 2.5" x 0.9"
• Includes mini-plug signal input connector
• Includes 1m long integral signal cable
• Made in the USA

Product Link: http://thesensorconnection.com/signal-conditioners/signal-conditioners/type-k-thermocouple-amplifier-signal-conditioner-0-5-vdc-out
