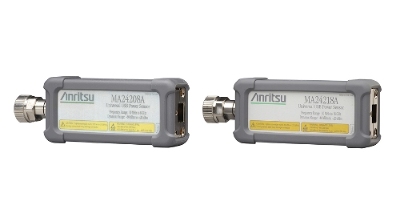

MORGAN HILL, CA -- Anritsu Company introduces the MA24208A/MA24218A Universal USB Power Sensors that leverage Anritsu's patented triple path architecture to provide highly accurate, true RMS measurements of CW, multi-tone, and digitally modulated signals up to 18 GHz. Featuring best-in-class measurement speeds and over-power protection levels, the MA24208A/MA24218A have been designed to increase throughput and reduce cost-of-test in any lab, high-volume manufacturing and field environment.
Combining a broad measurement range of -60 to +20 dBm with measurement speeds of >1,600 readings/s continuous and >11,000 readings/s buffered, the MA24208A/MA24218A bring a high level of performance to a variety of applications. In addition, they offer the best damage protection of up to +30 dBm CW and +34 dBm peak at < 10 microseconds.
The broad frequency coverage of 10 MHz to 18 GHz allows the MA24208A/MA24218A sensors to conduct accurate modulated power measurements on signals, including W-CDMA, LTE and WLAN standards. A built-in internal and external trigger facilitates multi-slot measurement of TDD waveforms, such as GSM, WiMAX, and TD-SCDMA.
In device under test (DUT) characterization and other applications requiring large amounts of data, a Continuous Average Buffer feature in the MA24208A/MA24218A sensors allows users to buffer up to 8,192 continuous average measurements before reading the results over the bus. This saves considerable time compared to conventional methods that send measurements individually. For the best possible accuracy when conducting measurements on modulated signals, the USB sensors have an Enhanced Modulation feature. The sensors also have a triggering hysteresis capability that minimizes the risk of triggering on an unintended edge for greater accuracy.
The MA24208A/MA24218A sensors can be used with any Windows-based PC and controlled via PowerXpert™. For field applications, the sensors are also compatible with most of Anritsu's industry leading handheld instruments, including the Site Master™ cable and antenna analyzer, Spectrum Master™ handheld spectrum analyzer, Cell Master™ base station analyzer, and VNA Master™ vector network analyzer (may require Option 19).
The MA24208A/MA24218A sensors add to Anritsu's broad power measurement portfolio. The ML2490A series has the performance required for narrow fast rising-edge pulse power measurements, including radar, while the ML2480B series is suited for wide-band power measurements on signals, such as W-CDMA, WLAN, and LTE. The ML2430A power meters are designed for CW applications, offering a combination of accuracy, speed and flexibility in a low-cost package, and can be battery operated. With seven different families of power sensors (including USB sensors), Anritsu provides engineers with the right solution for precision power measurement, whatever the application.
