Alliance Sensors Launches New Industrial LVDT

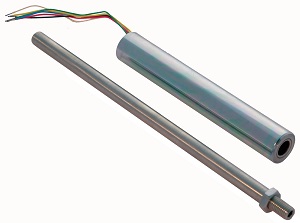

Alliance Sensors Group has expanded its line of industrial LVDTs with the addition of the LA-21-A series. The LA-21-A series AC LVDTs offers the robust designs for which Alliance Sensors Group is known in typical industrial packages, with full ranges from 3 inches (75 mm) to 15 inches (375 mm). They are supplied in a zinc-plated-steel 0.805 inch (20.5 mm) diameter housing with 4-inch (100 mm) stripped-and-tinned axial leads. Each LVDT’s core is enclosed in a 3/8 inch (9.5 mm) diameter extension rod from which it cannot break loose and has a 5/16-24 UNF or M8 X 1.25 male thread for easy attachment.

LA-21-A AC-LVDTs are ideal for stamping or drawing press die opening, injection molding machine platen position, process valve controls, and roller gap feedback in steel or aluminum mills.

Features:
- Mildly Radiation Resistant
- Core totally enclosed in 3/8 inch (9.5 mm) diameter core extension rod
- Environmentally sealed to IP68

Mated with ASG’s SC-100 industrial LVT DIN-rail-mountable analog output signal conditioner, and LA-21-A LVDT becomes an ideal solution for typical industrial applications requiring rugged, accurate position sensors. For Power Generation or heavy industrial applications, please see the ASG LA-27 or PG series LVDTs.

http://www.alliancesensors.com
