45 pF to 1000 pF Mounting Capacitors Exhibit Very High Q

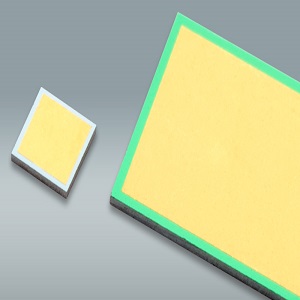

Manchester, NH --- SemiGen, Inc. offers a series of mounting capacitors that can be screened to class K quality requirements for space. The low-loss very-high Q mounting capacitors feature low temperature coefficients. With six different capacitances offered from 45 pF to 1000 pF, these capacitors are developed using an MNOS approach and precision photolithography to provide a dependable device. SemiGen’s mounting capacitors are manufactured on dies as thin as 3 mils to limit inductance. These mounting capacitors have a withstanding voltage of at least 50 VDC up to 200 VDC, long-term stability, and gold contacts on the front and back with thermal and mechanical properties that allow the device to be mounted with optimum matching.

Mounting capacitors are ideally suited for applications that require DC protection, RF bypassing, or fixed tuning of amplifiers, oscillators, switches, filters, and multipliers. Standard chip sizes range from 20x40 mils to 127x145 mils, custom designs and thicknesses are available through SemiGen. Design guidelines are virtually limitless and SemiGen can design to accommodate any FET and MMIC device.

Download a full datasheet at http://www.semigen.net/Chip-and-Mounting-Capacitors

For more information, visit http://www.semigen.net
