100V No-Opto Flyback Regulator Delivers 5W in SOT-23 Package

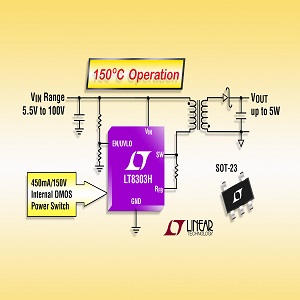

MILPITAS, CA --- Linear Technology Corporation announces the H-grade version of the LT8303, a monolithic flyback regulator with guaranteed operation for junction temperatures as high as 150°C. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no opto-isolator or third winding for regulation. The LT8303 operates over a 5.5V to 100V input voltage range, has a 0.45A/150V integrated DMOS power switch and delivers up to 5 watts of output power, making it well suited for a wide range of telecom, datacom, automotive, industrial, medical and military applications.

The output voltage is set with only one external resistor and the transformer turns ratio. Several off-the-shelf transformers, identified in the data sheet, can be used for numerous applications. The LT8303 operates in boundary mode, which is a variable frequency current mode control switching scheme, typically resulting in ±1% output voltage load and line regulation. Boundary mode enables the use of a smaller transformer compared to equivalent continuous conduction mode designs. The high level of integration and the use of low ripple Burst Mode® operation result in a simple to use, low component count and high efficiency application solution for isolated power delivery.

Additional features include output overload and short-circuit protection, 70µA no load operating quiescent current, internal loop compensation along with an accurate enable and undervoltage lockout with hysteresis.

Summary of Features: LT8303H

VIN Range from 5.5V to 100V
Up to 5 Watts of Output Power
Onboard 0.45A, 150V Integrated DMOS Power Switch
Off-the-Shelf Power Transformers
No Opto-Isolator, LT1431 or Third Winding Required for Voltage Feedback
70µA Quiescent Current
Boundary Mode Operation
VOUT Set with One External Resistor
Internal Loop Compensation
Accurate Input Enable & Undervoltage Lockout with Hysteresis
Small TSOT Package
H Grade: –40°C to 150°C Operating Junction Temp

The LT8303H operates over a –40°C to 150°C junction temperature range and is available in a small SOT-23 package. Pricing starts at $3.65 each in 1000-piece quantities. For more information, visit http://www.linear.com/product/LT8303
